Introduction

Architecture

ADC driver follows Linux’s Industrial I/O (IIO) subsystem. IIO provides ADC interface to user space. The ADC software architecture is illustrated in the following figure.

ADC software architecture contains the following parts:

• IIO drivers: ADC drivers.

  • ADC: ADC driver.

  • Comparator: comparator driver, it is only used when ADC in comparator-assist mode.

  • IIO timers triggers: It is only used when ADC or comparator in timer-trigger mode.

• IIO frameworks: IIO subsystem core drivers.

• IIO user (kernel): for kernel use.

• Application: User space use.

  • libiio: Libiio is an open source library for accessing IIO devices. It encapsulates access to /sys/bus/IIO/devices (configure IIO) and /dev/IIO/deviceX (read / write IIO), and provides easy to test IIO command-line tools (iio_info / iio_readdev) and iiod server. For libiio source code, refer to github libiio.

  • Demo: A simple example to show how to use ADC.

For more details of IIO, refer to kernel industrial v5.4 or kernel industrial v6.6.

Implementation

ADC driver is implemented in the following files.

File	Description
<linux>/drivers/rtkdrivers/adc/Kconfig	ADC driver Kconfig
<linux>/drivers/rtkdrivers/adc/Makefile	ADC driver Makefile
<linux>/drivers/rtkdrivers/adc/realtek-adc.c	ADC functions.
<linux>/drivers/rtkdrivers/adc/realtek-adc.h	ADC related function declaration, macro definition, structure definition and the other header files quoted
<linux>/drivers/rtkdrivers/adc/realtek-comparator.c	ADC comparator functions. It is used when ADC in comparator-assist mode.
<linux>/drivers/rtkdrivers/adc/realtek-comparator.h	Comparator related function declaration, macro definition, structure definition and the other header files quoted

Configuration

DTS Configuration

ADC DTS node:

adc: adc@42012000 {
   compatible = "realtek,ameba-adc";
   #address-cells = <1>;
   #size-cells = <1>;
   #io-channel-cells = <1>;
   reg = <0x42012000 0x100>,
      <0x42012800 0x100>;
   interrupts = <GIC_SPI 14 IRQ_TYPE_LEVEL_HIGH>;
   clocks = <&rcc RTK_CKE_CTC>, <&rcc RTK_CKE_ADC>;
   clock-names = "rtk_ctc_clk", "rtk_adc_clk";
   rtk,adc-mode = <0>; // 0: Software-trigger mode, 1: Automatic mode, 2: Timer-trigger mode
   rtk,adc-timer-period = <200000000>; // Useful only in timer-trigger mode. Unit: ns. Range: 100ms~2s
   //rtk,adc-channels = <0>, <1>, <2>, <6>;
   //rtk,adc-diff-channels = <4 5>;
   nvmem-cells = <&adc_normal_cal>, <&adc_vbat_cal>;
   nvmem-cell-names = "normal_cal", "vbat_cal";
   status = "disabled";
   comparator: comparator@0 {
      compatible = "realtek,ameba-comparator";
      interrupts = <GIC_SPI 15 IRQ_TYPE_LEVEL_HIGH>;
      rtk,cmp-ref0 = <10>;
      rtk,cmp-ref1 = <30>;
   };
};

The DTS configurations of ADC are listed in the following table.

Property	Description	Default	Configurable
compatible	The description of ADC	“realtek,ameba-adc”	No
reg	The hardware address and size for ADC	<0x42012000 0x100>	No
reg	The hardware address and size for comparator	<0x42012800 0x100>	No
interrupts	The GIC number of ADC	<GIC_SPI 14 IRQ_TYPE_LEVEL_HIGH>	No
interrupts	The GIC number of comparator	<GIC_SPI 15 IRQ_TYPE_LEVEL_HIGH>	No
clocks	The clock of ADC	<&rcc RTK_CKE_CTC> and <&rcc RTK_CKE_ADC>	No
rtk,adc-mode	ADC operation mode 0: software-trigger mode 1: auto mode 2: timer-trigger mode 3: comparator-assist mode		0/1/2/3
rtk,adc-timer-period	ADC timer period Useful only in timer-trigger mode. Unit: ns. Range: 100ms~2s
nvmem-cells	The nvmem cells of ADC
nvmem-cell-names	The name of nvmem cells of ADC
status	Whether enable this device disabled okay
rtk,cmp-ref0	Comparator internal reference voltage 0		0~31
rtk,cmp-ref1	Comparator internal reference voltage 1		0~31

Note

• When selecting ADC timer-trigger mode, the following configuration must be set.

  rtk,adc-mode = <2>;


• Timer index selected in parameter realtek_adc_cfg in realtek-adc.c, the corresponding timer DTS node status must be set to okay.

• Only when rtk,adc-mode = <3>, comparator sub-node is populated.

• When selecting comparator timer trigger mode, the following configuration must be set.

  rtk,adc-mode = <3>;


• Timer index selected in parameter realtek_comp_priv_info in realtek-comparator.c, the corresponding timer DTS node status must be set to okay.

Build Configuration

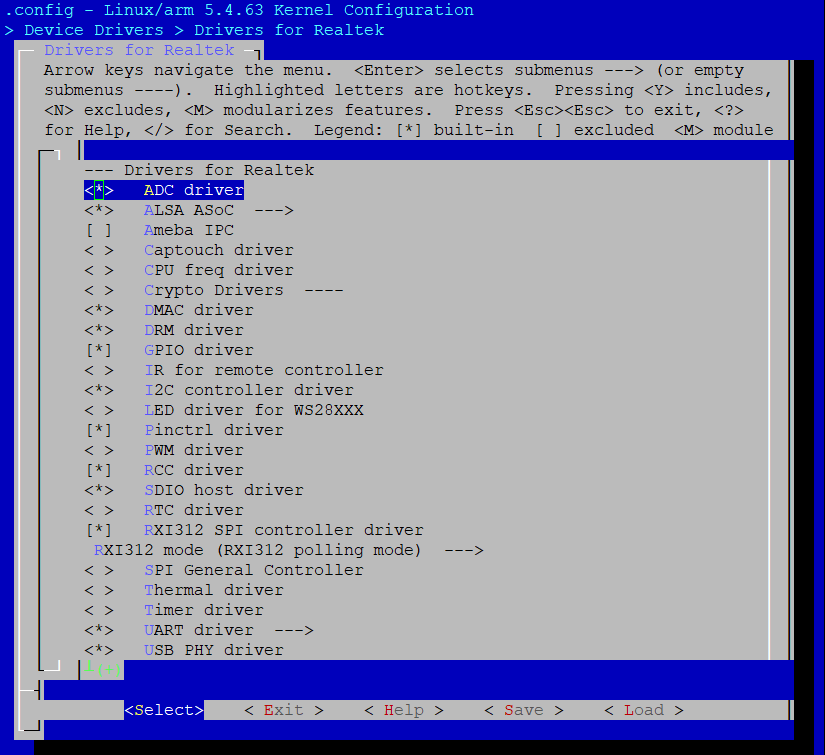

Select Device Drivers > Drivers for Realtek > ADC driver in order:

APIs

Official document: kernel API guide v5.4 or kernel API guide v6.6.

API for User Space

Sysfs Interface

Interfaces	Introduction
/sys/bus/iio/devices/iio:deviceX	Configure and enable the IIO device.
/sys/bus/iio/devices/triggerX	Configure and enable the IIO trigger.

For more API details, refer to <linux>/Documentation/ABI/testing/sysfs-bus-iio

ADC demo for user space locates at <test>/adc.

ADC Example

The demo is a simple example to read single ADC sample data.

1. Open ADC single raw read

   sprintf(dev_name, "/sys/bus/iio/devices/iio:device0/in_voltage%d_raw", adc_ch);
   fd = open(dev_name, O_RDONLY);


2. Single read ADC sample data

   read(fd, buffer, 4);


3. Convert read data from char to int

   value = atoi(buffer);


   Value is the ADC single read data.

ADC Single Read Example

1. Get single raw sample data

   cat /sys/bus/iio/devices/iio:device0/in_voltage0_raw


2. Get ADC offset

   cat /sys/bus/iio/devices/iio:device0/in_voltage_offset


3. Get ADC scale

   cat /sys/bus/iio/devices/iio:device0/in_voltage_scale


4. Get ADC differential offset

   cat /sys/bus/iio/devices/iio:device0/in_voltage-voltage_offset


5. Get ADC differential scale

   cat /sys/bus/iio/devices/iio:device0/in_voltage-voltage_scale


ADC Buffer Read Example

The steps to read ADC buffer are as follows:

1. Create trigger

   echo 0 > /sys/devices/iio_sysfs_trigger/add_trigger


   Note

   0 is the index we need to assign to the trigger.

2. Assign trigger to device

   echo sysfstrig0 > /sys/bus/iio/devices/iio:device0/trigger/ current_trigger


   Note

   Since we use 0 as the index, the trigger will be named sysfstrig0.

3. Enable scan elements: selecting the channel whose data values are pushed into the buffer

   echo 1 > /sys/bus/iio/devices/iio:device0/scan_elements/in_voltage0_en
   echo 1 > /sys/bus/iio/devices/iio:device0/scan_elements/in_voltage1_en
   echo 1 > /sys/bus/iio/devices/iio:device0/scan_elements/in_voltage2_en
   echo 1 > /sys/bus/iio/devices/iio:device0/scan_elements/in_voltage6_en


4. Set buffer size

   echo 100 > /sys/bus/iio/devices/iio:device0/buffer/length


5. Enable buffer

   echo 1 > /sys/bus/iio/devices/iio:device0/buffer/enable


6. Enable trigger: start acquisition

   echo 1 > /sys/bus/iio/devices/trigger0/trigger_now


7. Disable buffer

   echo 0 > /sys/bus/iio/devices/iio:device0/buffer/enable


Character Device

Interfaces	Introduction
/dev/iio:deviceX	Access configured events and data.

API for Kernel Space

Usage

Interfaces	Introduction
iio_read_channel_raw	Read from a given channel.
iio_convert_raw_to_processed	Convert a raw value to a processed value.
iio_read_channel_attribute	Read values from the device attribute.
iio_read_channel_offset	Read the offset value for a channel.
iio_read_channel_scale	Read the scale value for a channel.
iio_read_channel_processed	Read processed value from a given channel.
iio_get_channel_type	Get the type of a channel.

Configfs

Interfaces	Introduction
iio_sw_trigger_create	Create a new trigger type.
iio_sw_trigger_destroy	Destroy a trigger type.
iio_register_sw_trigger_type	Register a new trigger type.
iio_unregister_sw_trigger_type	Unregister a trigger type.

For more details of APIs, refer to:

• <linux>/Documentation/ABI/testing/configfs-iio

• <linux>/Documentation/iio/iio_configfs.rst

Debugfs

Interfaces	Introduction
iio_debugfs_read_reg	Read registers
iio_debugfs_write_reg	Write registers
simple_open	Open
