Other Precautions

iDMA

The iDMA can transfer data from PSRAM or SRAM to DTCM. DTCM is a fast data memory in which data can be fetched within one clock cycle. Therefore, using the iDMA to move large blocks of data into DTCM for calculation can often improve performance. However, the use of iDMA has the following restrictions:

Address Restrictions

  • The iDMA can only move data between system memory (SRAM and PSRAM) and local memory (DRAM 0/1), or within local memory. Only transfers between system memories are not allowed.

  • Although the DTCM (DRAM) space is a continuous 256KB, our DTCM is actually composed of two DRAM memories (each with a size of 128K). The iDMA cannot transfer across DRAM boundary (boundary address: 0x1ffe0000), so if the transfer crosses the middle border, then iDMA address error IDMA_ERR_WRITE_ADDR will be reported. You can bypass this limitation by doing two moves. There is also no performance penalty for performing the transfer twice.

Interrupt Registration and Enable

If you need to use iDMA interrupts, not only need to register and enable interrupts, but also add control descriptor DESC_NOTIFY_W_INT when adding start iDMA transfer task. Otherwise, the interrupt will not enter the corresponding handler.

idma_register_interrupts(0, (os_handler)done_handler,  (os_handler)error_handler);
idma_copy_desc(dst_data, src_data, DATA_SIZE, DESC_NOTIFY_W_INT);

Refer to the iDMA example in our SDK and Xtensa docs sys_sw_rm.pdf.

FreeRTOS Systick

The systick value obtained by calling xTaskGetTickCountFromISR in the interrupt handler is not accurate. This API interface is to obtain the systick value before the system enters WATI. The systick value will not be updated until the interrupt handler finishes executing. We do not recommend using the systick value directly.

Cacheline

In the dsp_wrapper.h file, we wrap three D-Cache operation functions:

DCache_Clean
DCache_Invalidate
DCache_CleanInvalidate

When using DMA, be sure to pay attention to the operation of the cache:

  • In DCache_Invalidate operation, if length is not an integer multiple of the cacheline (128 Bytes), it will invalidate the entire cacheline. This will cause data stored in the same cacheline to be lost.

  • In DCache_Clean operation, if DMA has refreshed the memory, executing DCache_Clean again will overwrite the old data in the cache to the memory, resulting in invalid DMA fetch.

MPU Entry

If the user needs to make more detailed memory protection settings, he can add new MPU entries based on the default MPU table. The total available MPU entry number is 16. The default SDK configuration uses 7 entries. Note that the mpu_table.c files in the RTK_LSP path and project_dsp path should be modified simultaneously.

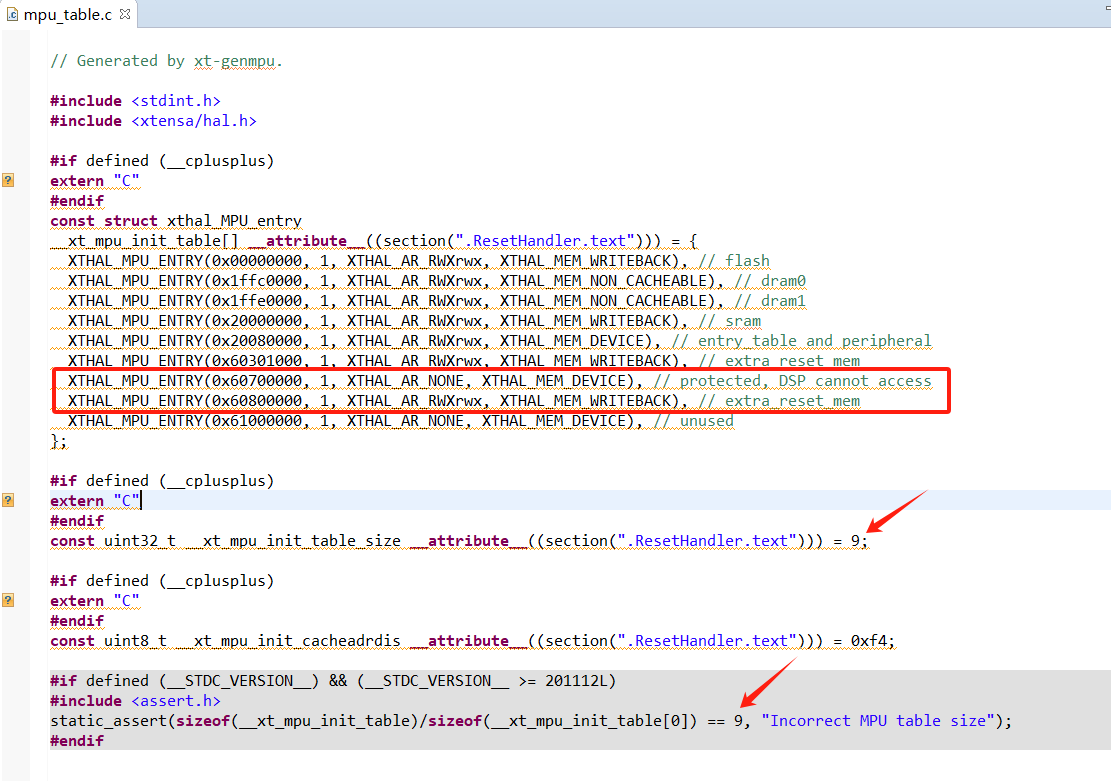

An example of the modification method is as follows: For example, we need to reserve a memory area in the memory address (0x60700000 - 0x60800000) in PSRAM that DSP cannot access it:

../../rst_dsp/dsp_precaution/figures/dspcfg_example_of_modification_method.png

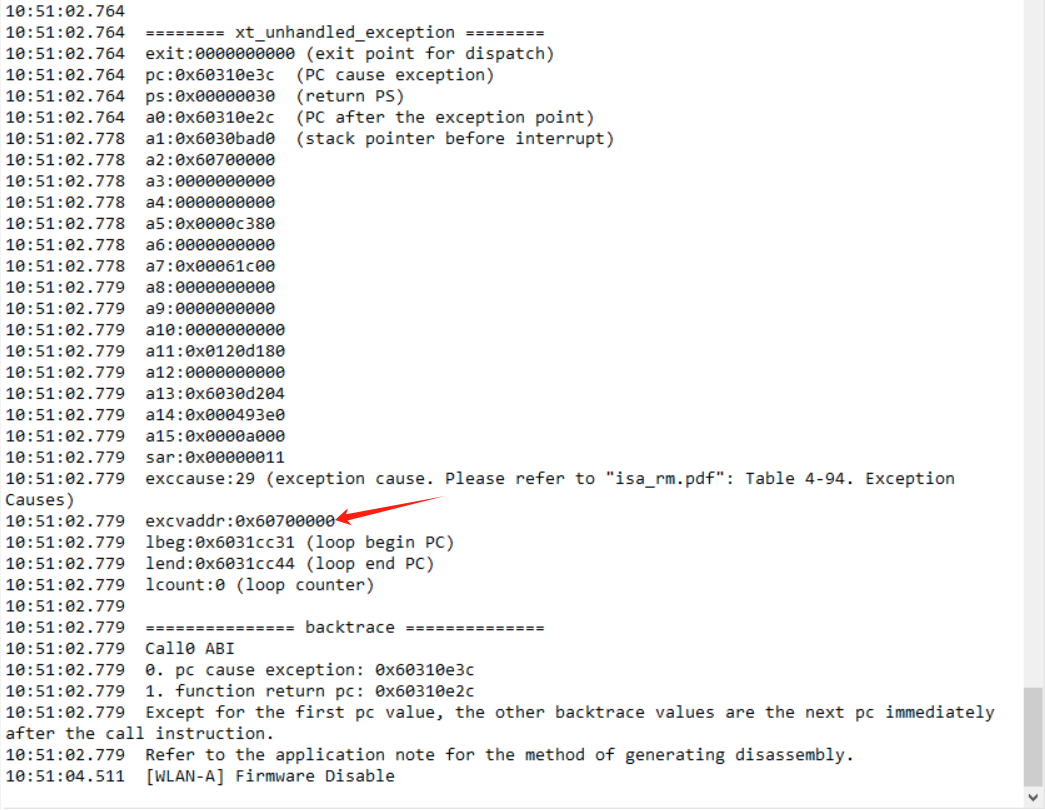

If the DSP accesses a protected address, the following crash log will be printed:

../../rst_dsp/dsp_precaution/figures/dspcfg_crash_log_printed.png
